Novel, Hybrid honey-comb cell design on Myval-THV results in a unique alternative sequence of dark-light bands which allow for accurate valve positioning across the annular plane without deep throating into the LVOT.

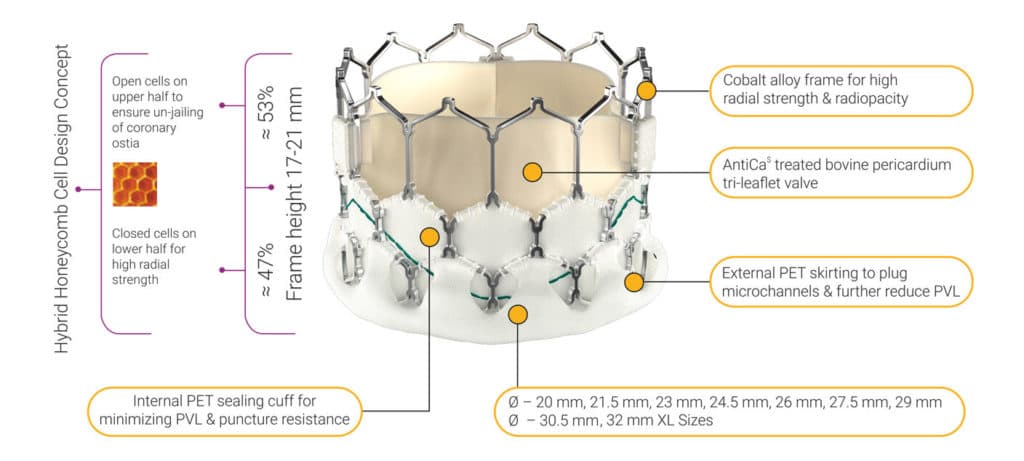

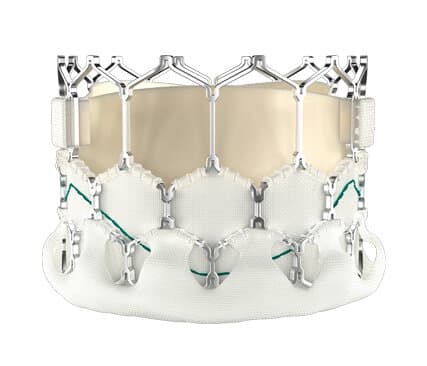

Unique Hybrid Honeycomb Cell Design

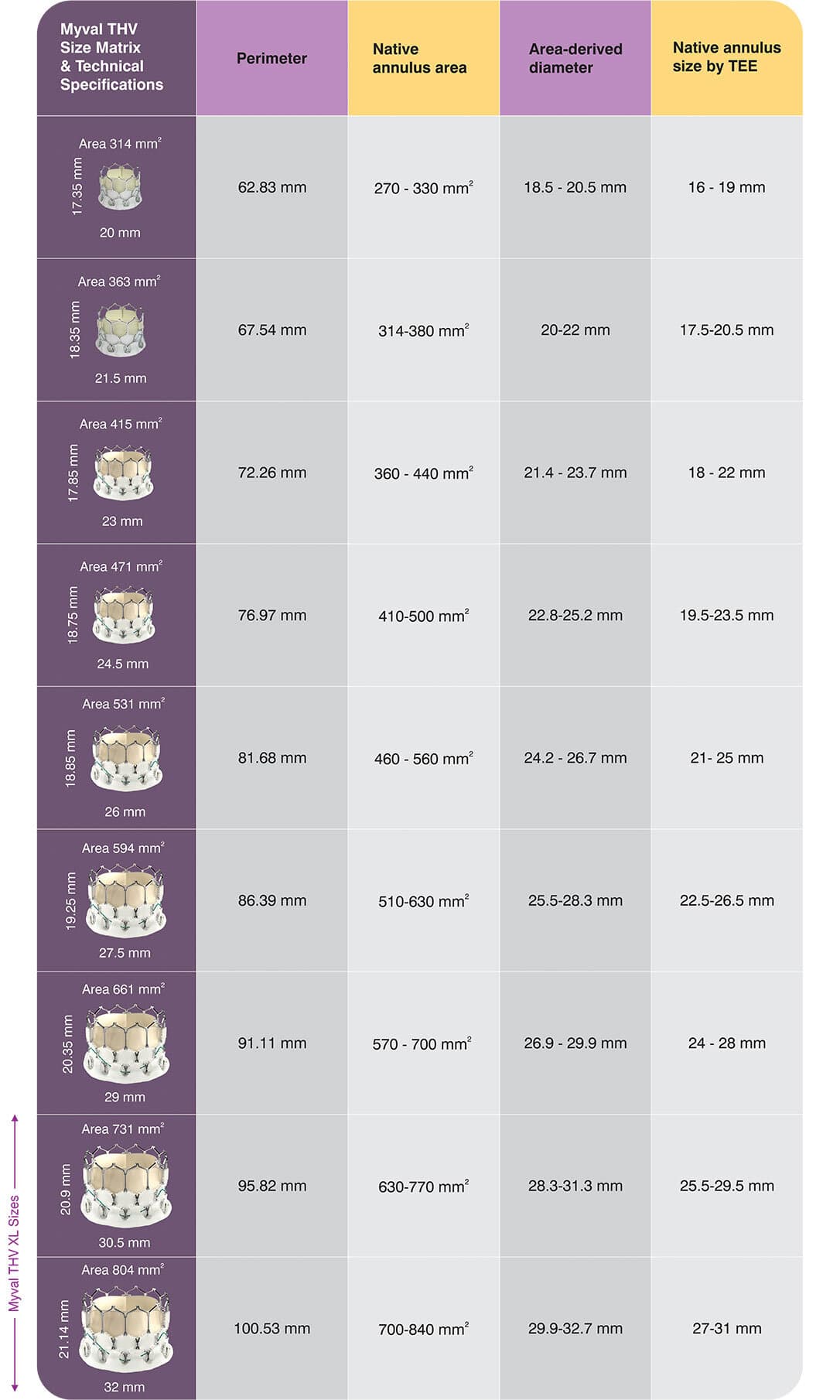

Optimal Size Matrix

Myval Standard Sizes : 20mm, 23mm, 26mm, 29mm
Myval Intermediate Sizes : 21.5mm, 24.5mm, 27.5mm
Myval XL Sizes : 30.5mm, 32mm*

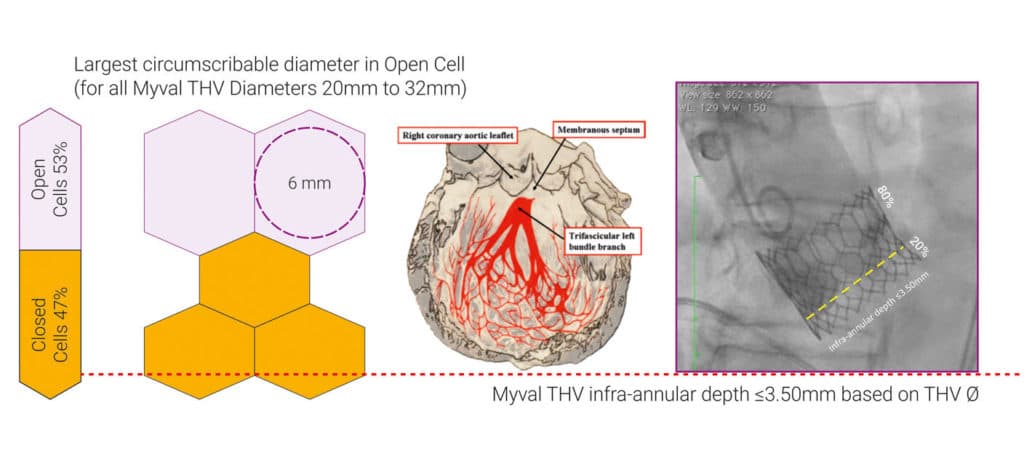

OPEN CELL= 53%
Open cells on upper half to ensure un-jailing of coronary ostia
CLOSED CELL = 47%
Closed cells is for lower half for high radial strength

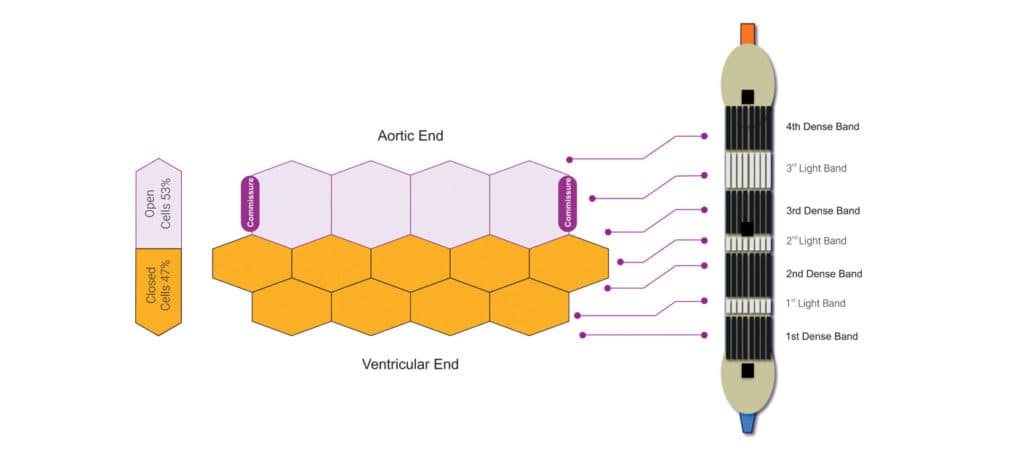

Unique Alternating Bands Pattern under fluoroscopy : Upon Crimping, the Hybrid Design of Myval forms a unique appearance for ease of positioning


Myval THV - Precise Crimping

Upon crimping

V- Shaped hinges on hexagonal frame fold, generating the dense bands on fluoroscopy

Vertical connectors | give rise to light bands

Alternating V-folds & vertical connectors give Myval a unique appearance on fluoroscopy for ease of positioning

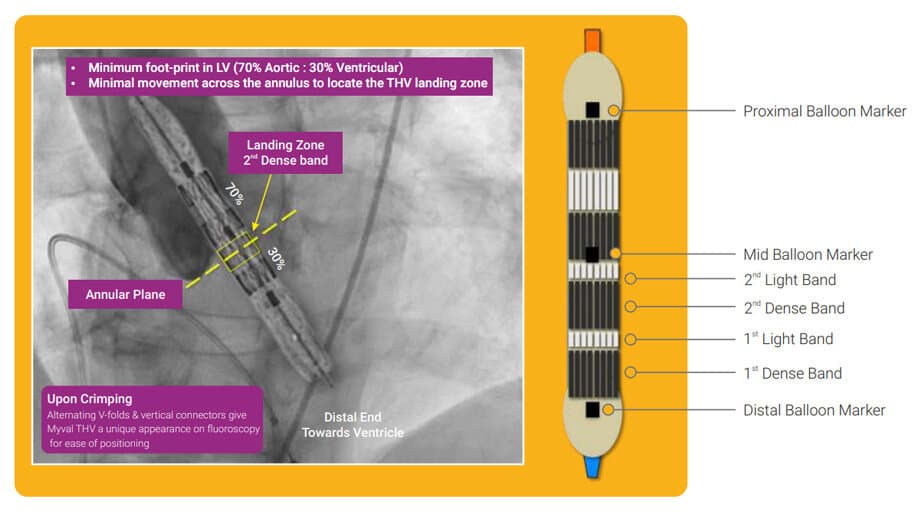

Myval – Precision Placement Technique

Schematic of Crimped Myval on Navigator Balloon


Ideal valve sizing may be in the range of 10-15% higher than area derived annulus diameter to have a good valve apposition
Please consult a trained Meril representative or Myval CoreLab team for more details
*Check availability of these sizes in your geography. Myval-THV diameter sizes 30.5 mm and 32 mm are currently not CE approved. Myval-THV diameter size 30.5 mm is currently pending approval from CDSCO.
